28cm SK C/34

[Jack B]

German Guns page 059.pdf

(65.45 KiB) Downloaded 149 times

Beklager å bruke google translate :
Er det noen som har bilder av (Zwischenplattform) som ligger under den (Maschinenplattform) maskiner plattformen i 28cm SK C / 34 turret på MKB Ørlandet. Plattformen og utstyr som befinner seg der bør være lik til tegningen vedlagt for den 28cm SK C / 28.

Jeg ville være takknemlig for ytterligere informasjon om dette nivået av turret.

Thanks

Jack Brower

Sorry using google translate:
Does anyone have pictures of the (Zwischenplattform) which is located bellow the (Maschinenplattform) machinery platform in the 28cm SK C/34 turret at MKB Örlandet. The platform and equipment located there should be similar to the drawing enclosed for the 28cm SK C/28.

I would be grateful for any information about this level of the turret.

[Erik H]

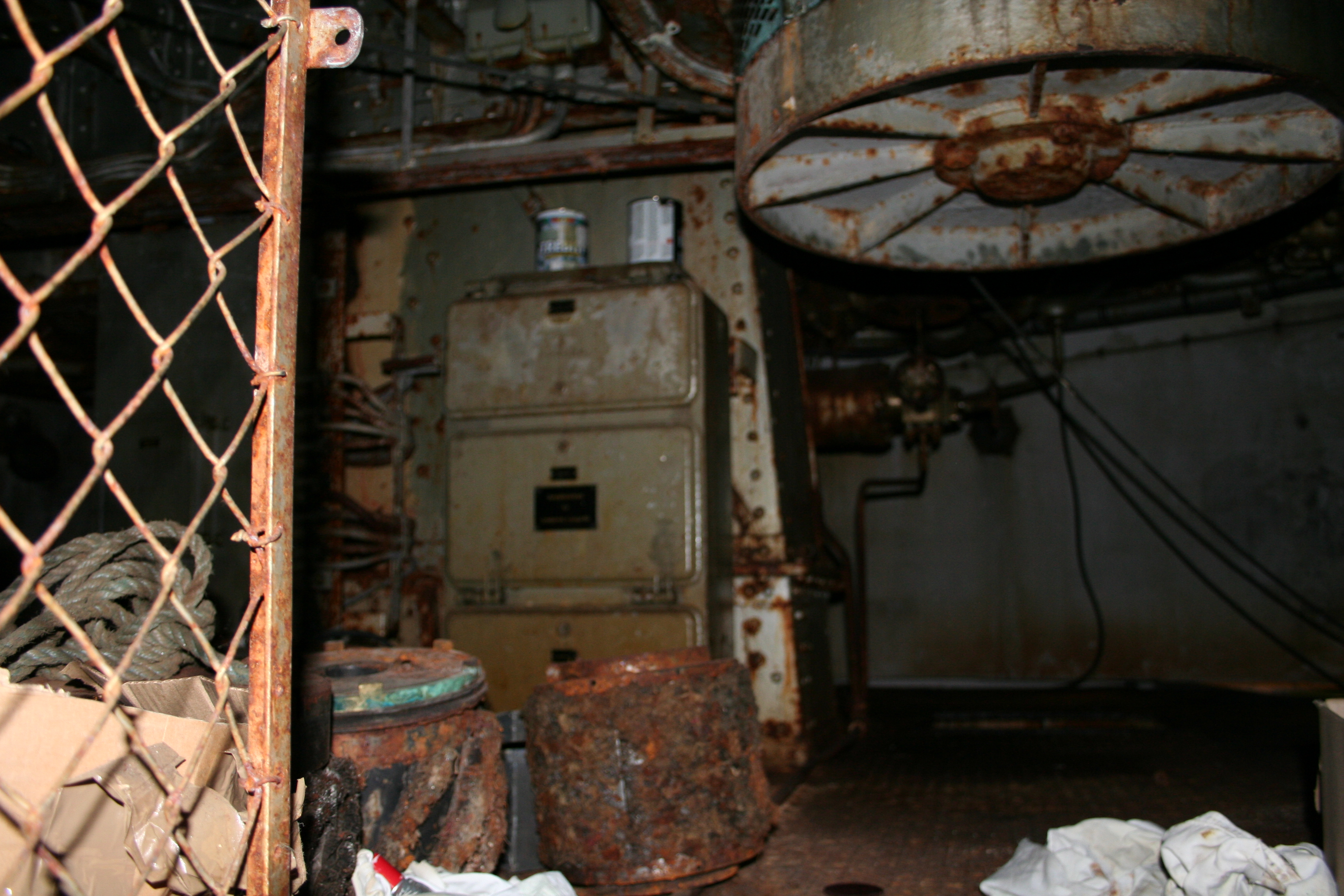

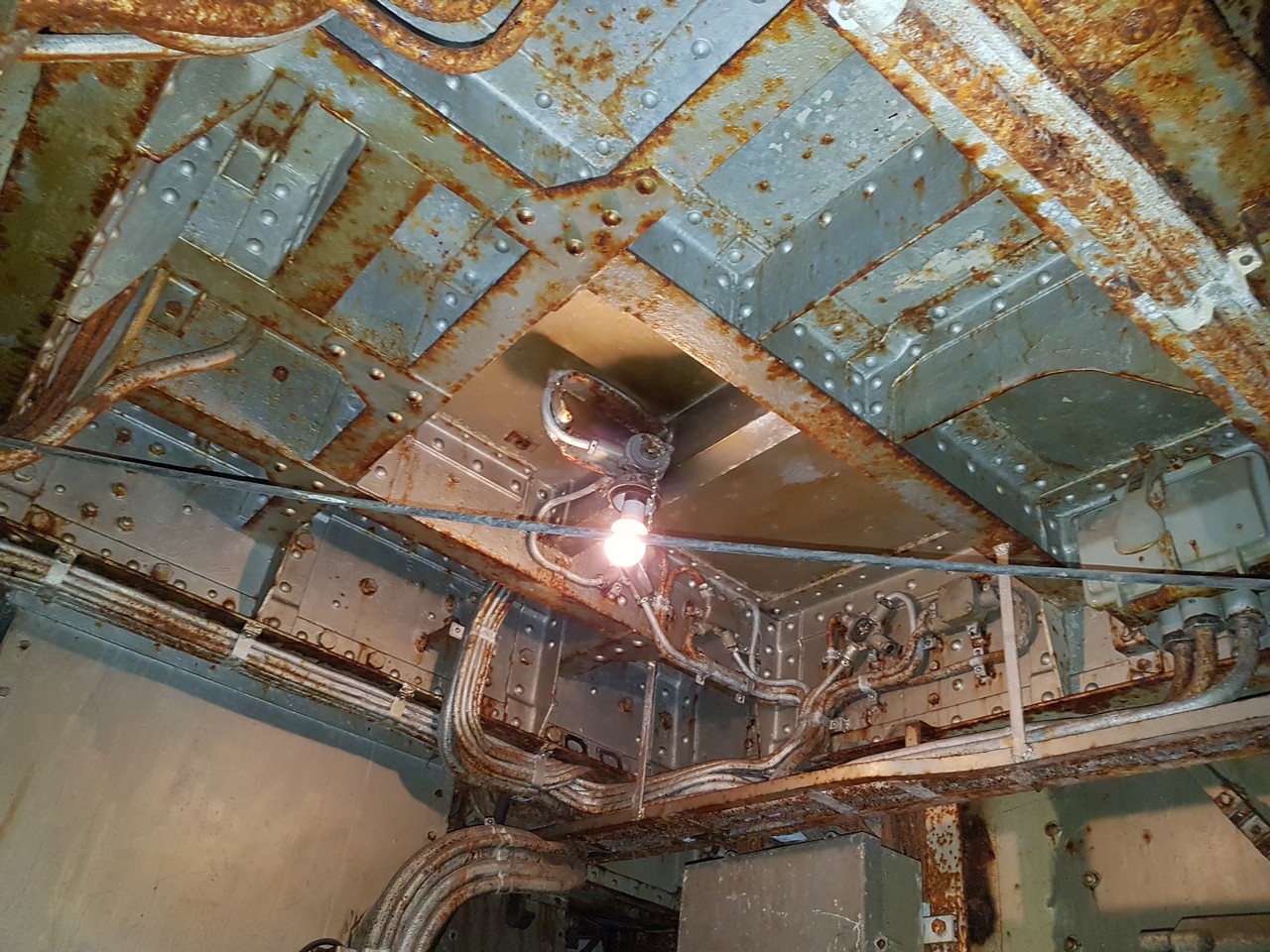

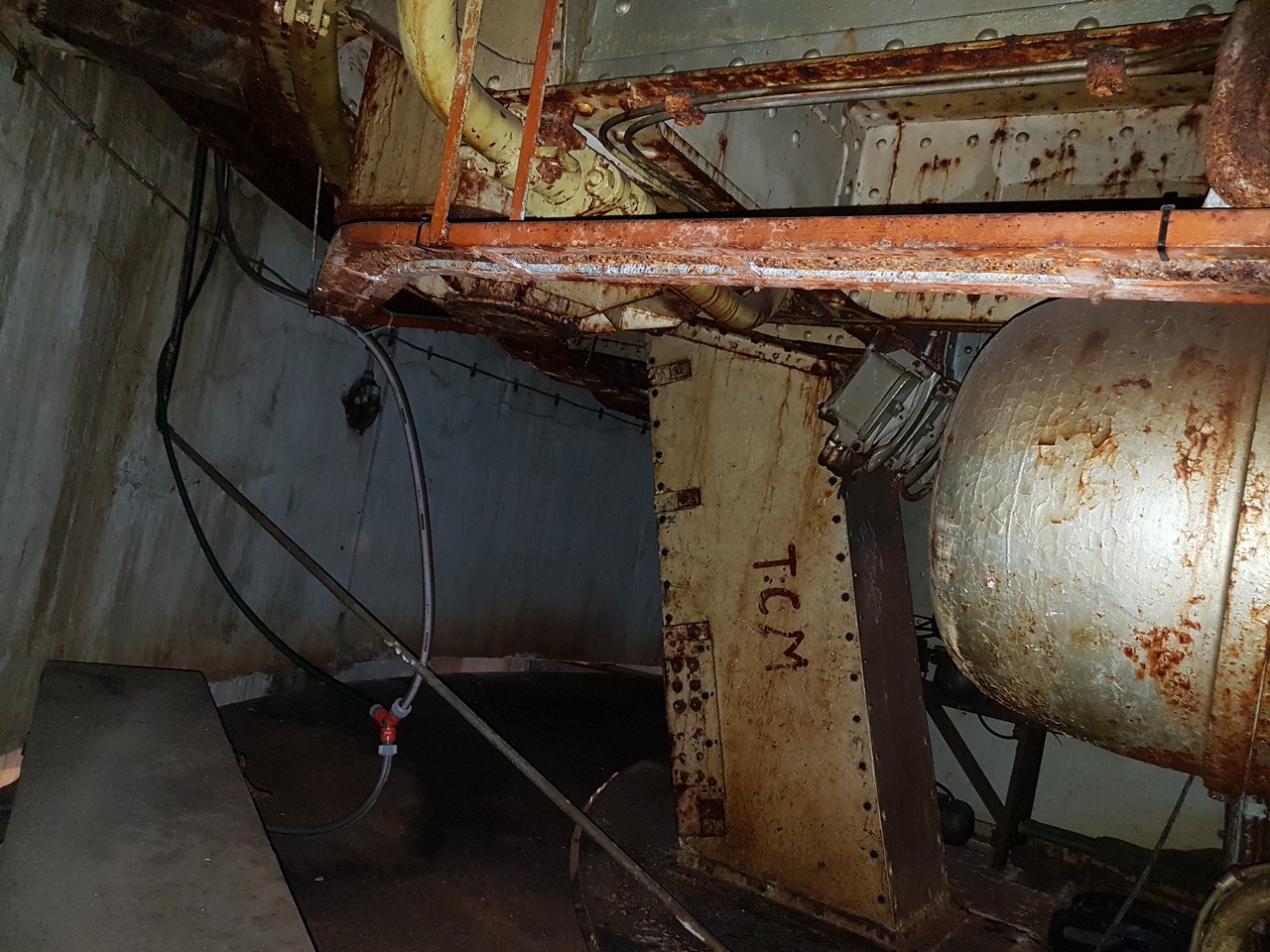

Probally the one place i never examined closely. But here are a few pics. I will look for more later or even better. next time i go there, i will take my gopro camera with mi. interesting place, but its very dark and dirty.
E

[Todd]

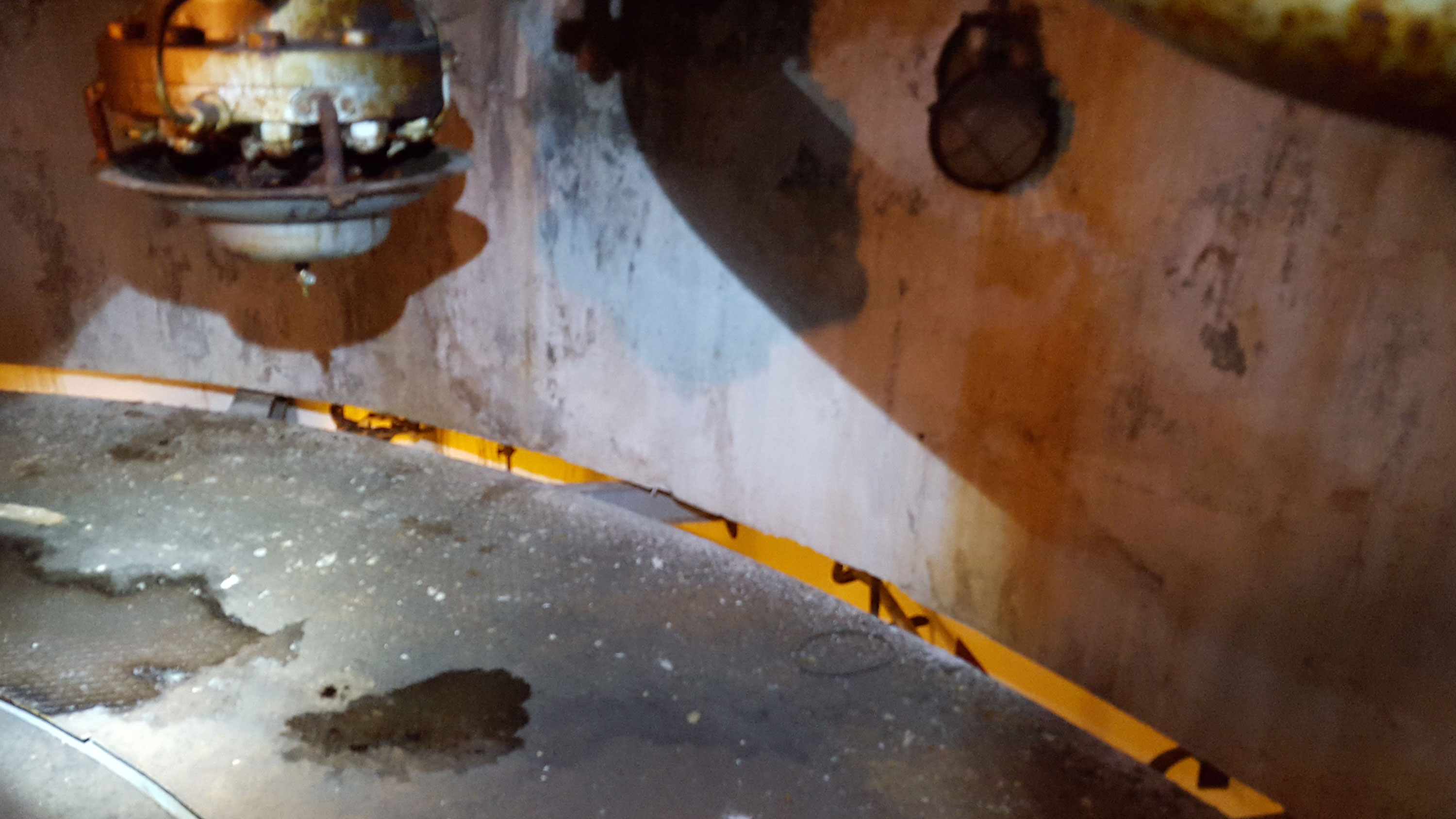

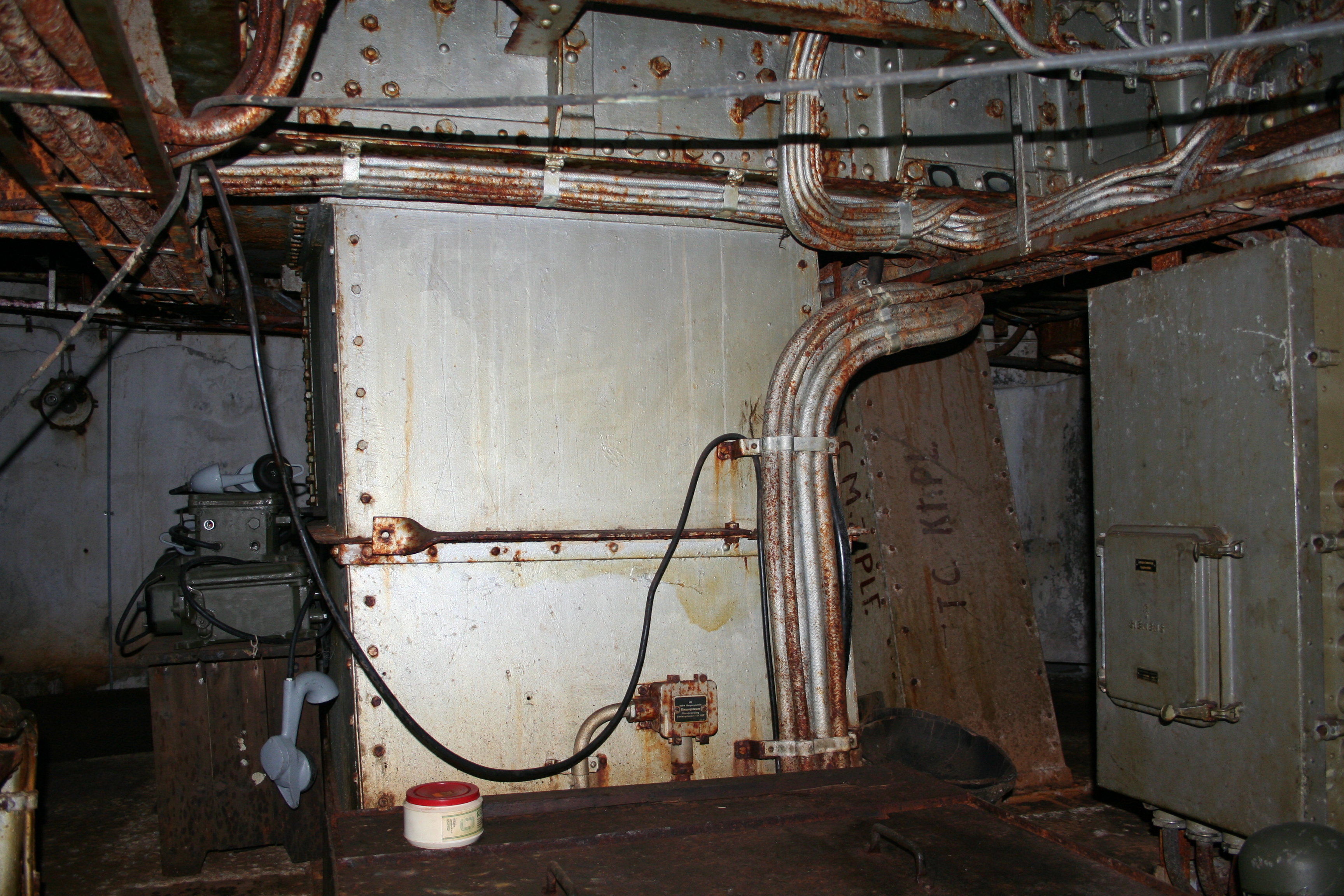

Ive got only one image of the platform after like 10+ trips actually

[Erik H]

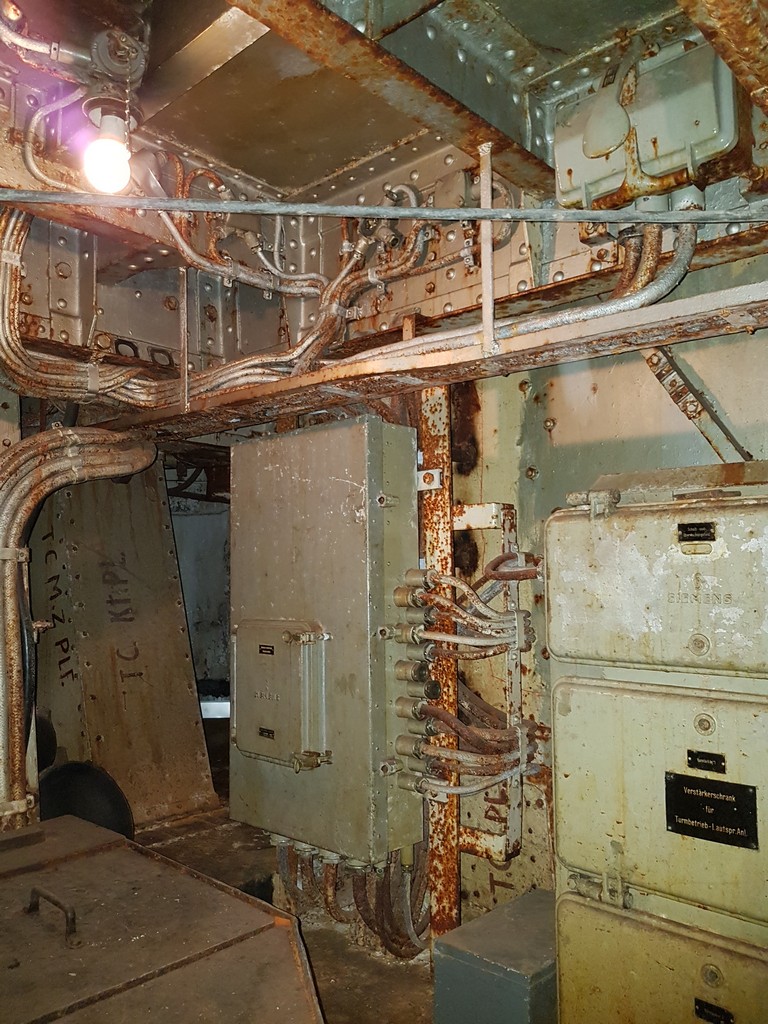

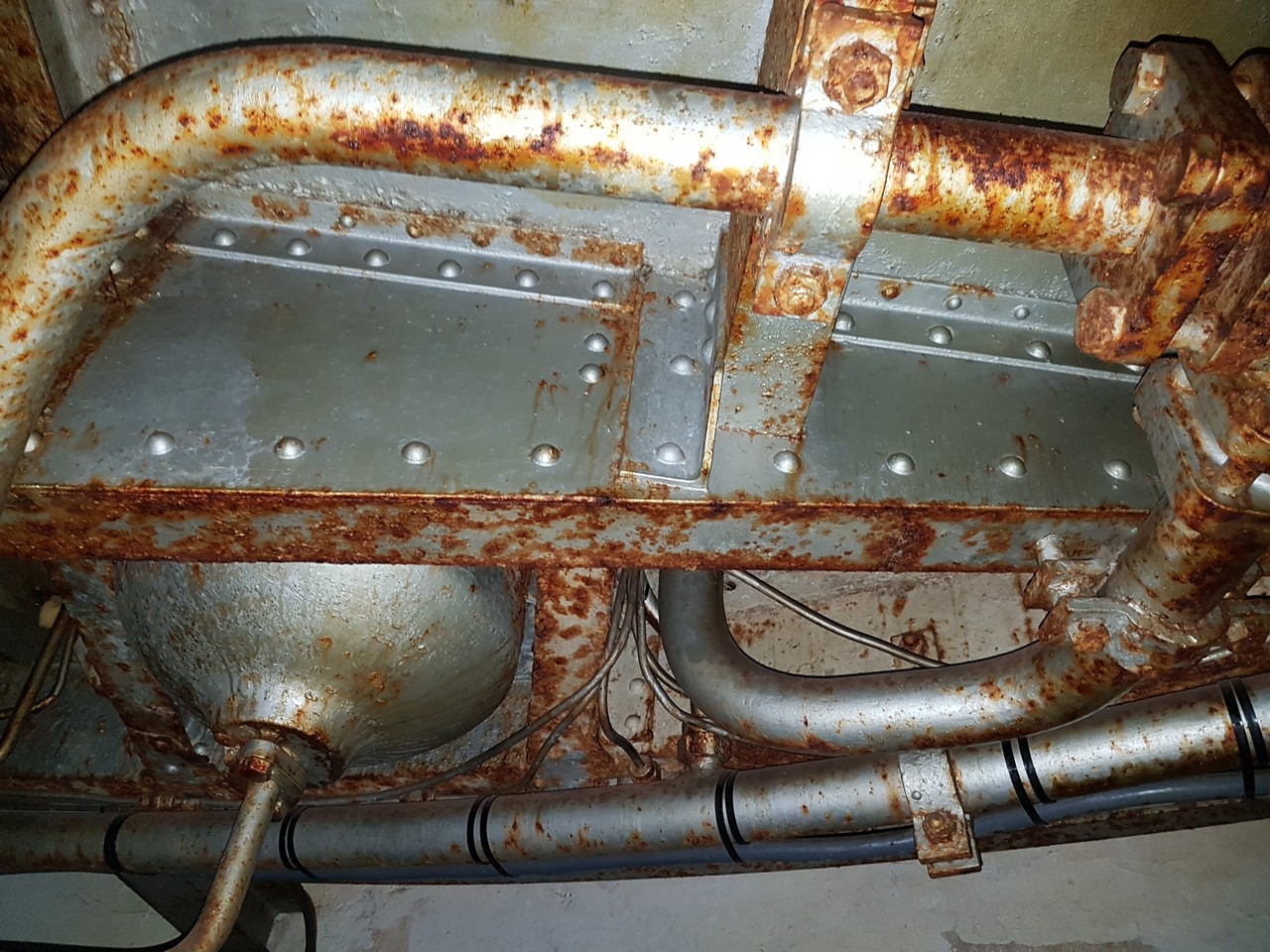

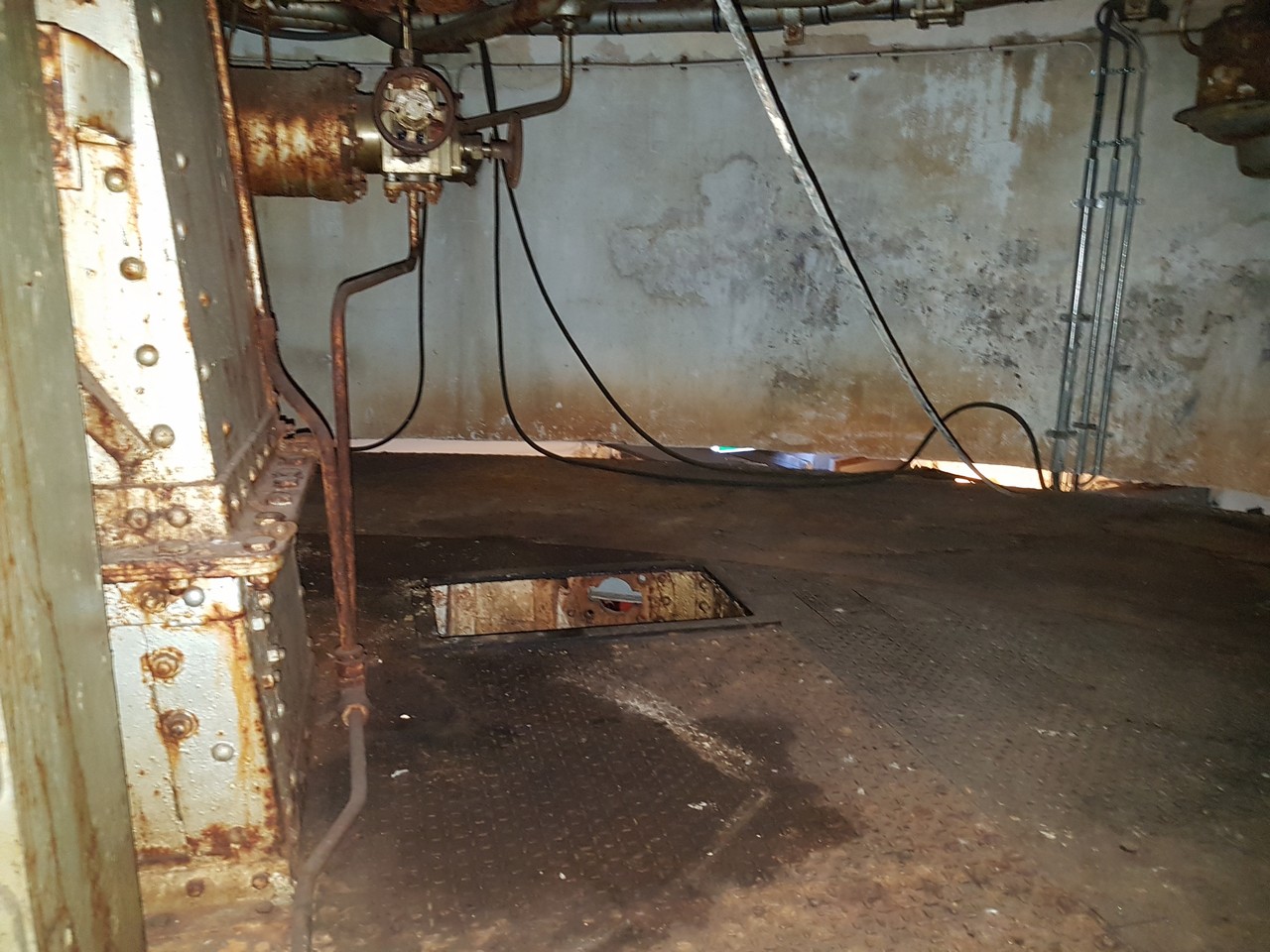

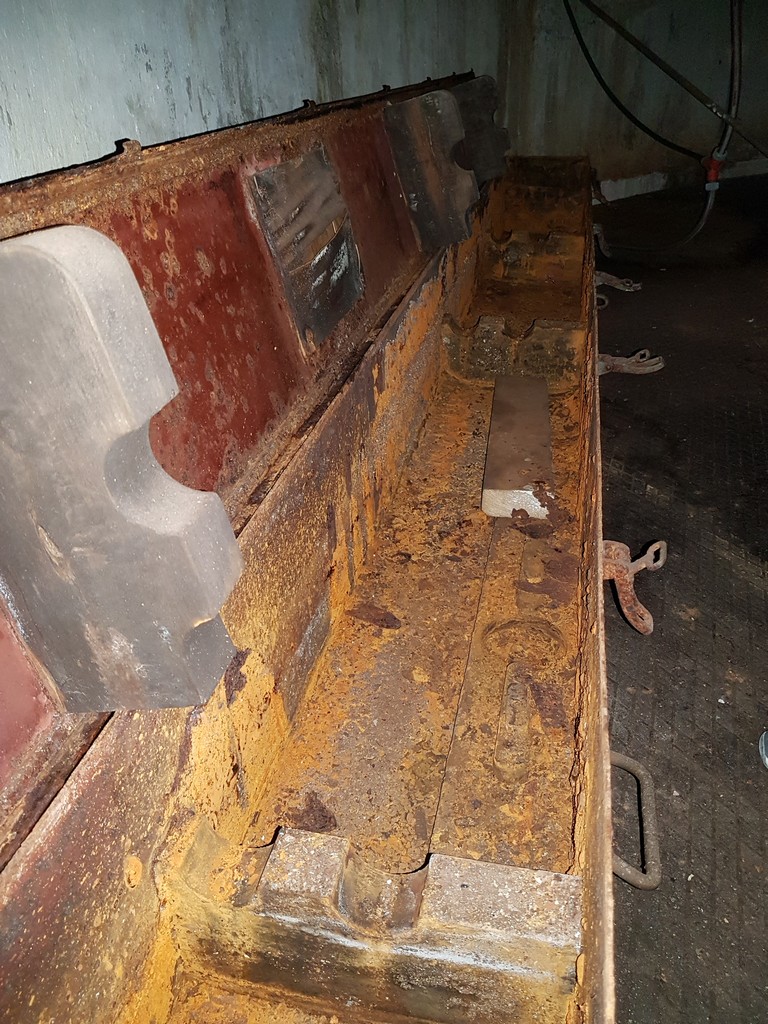

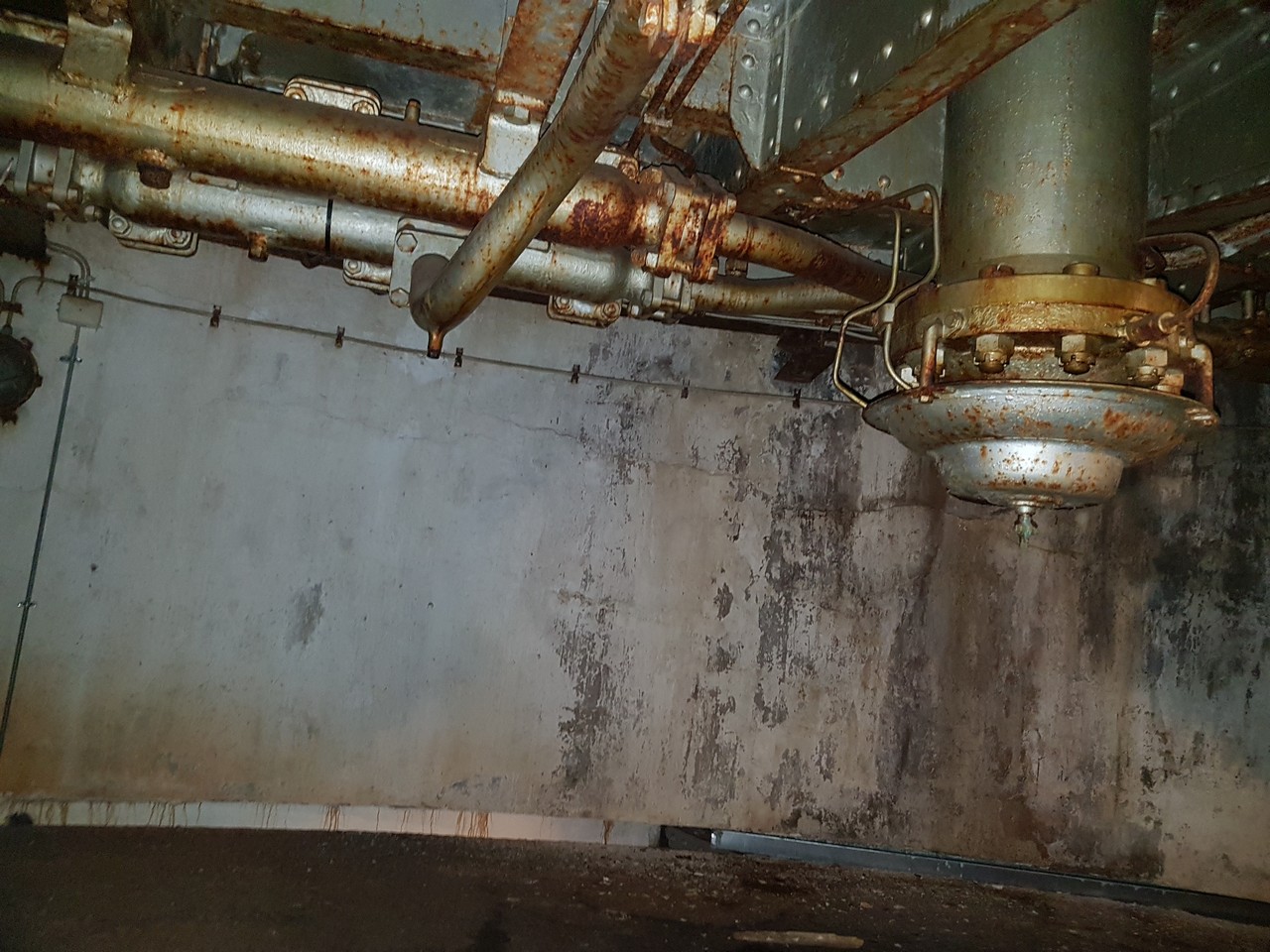

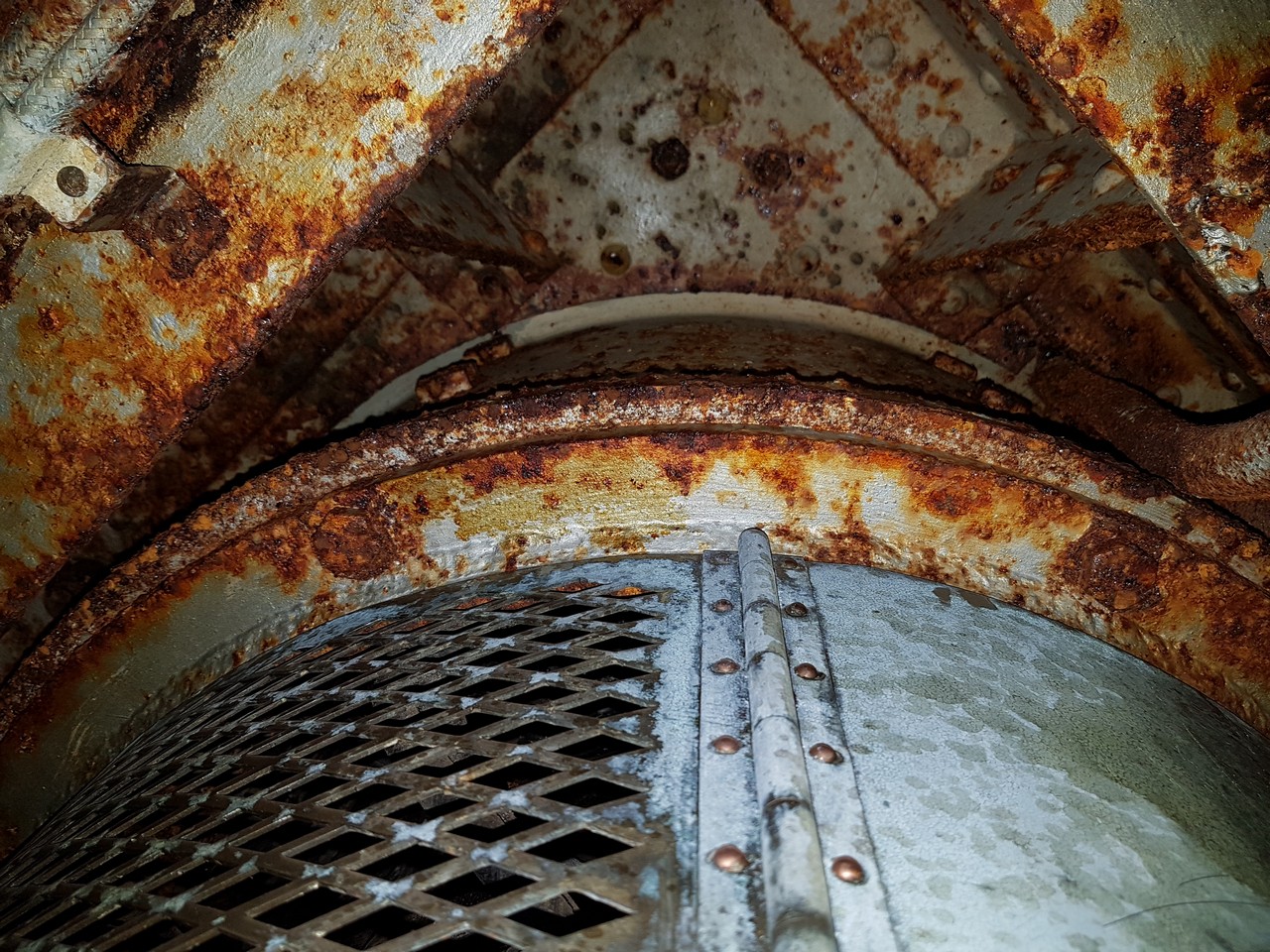

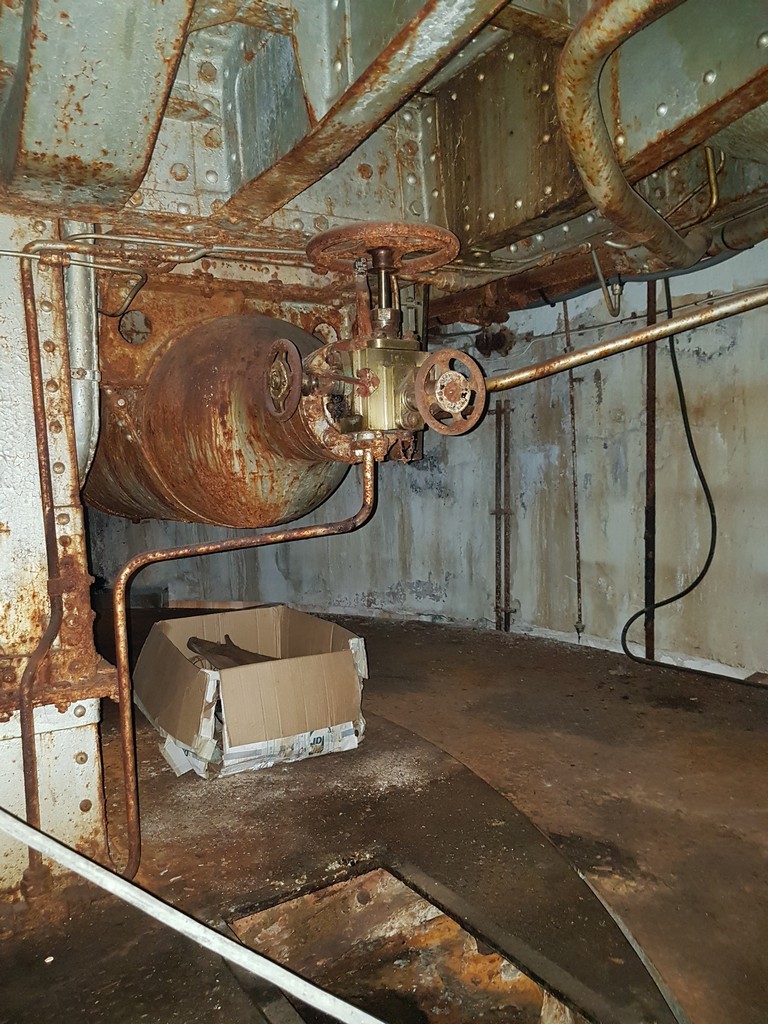

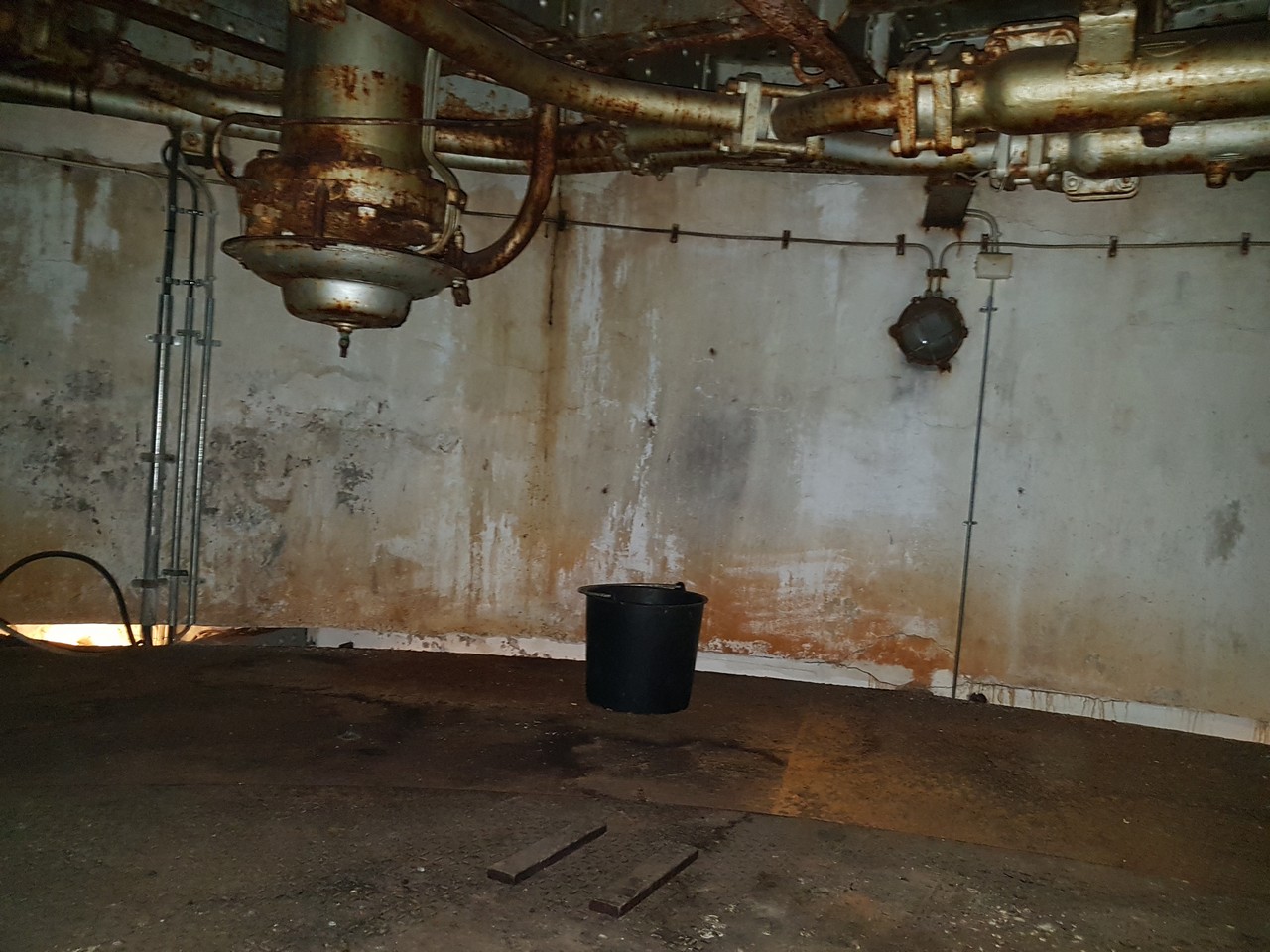

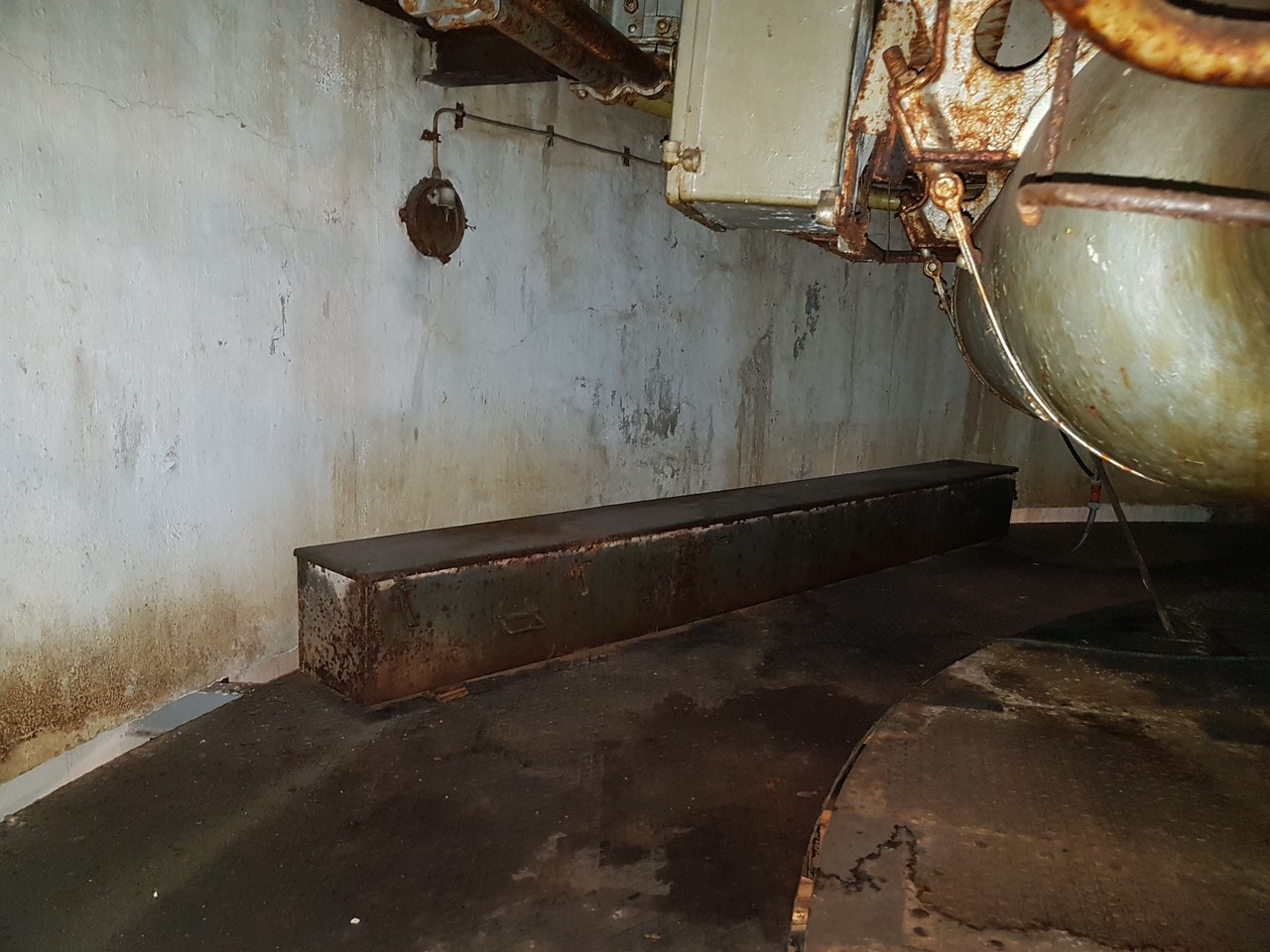

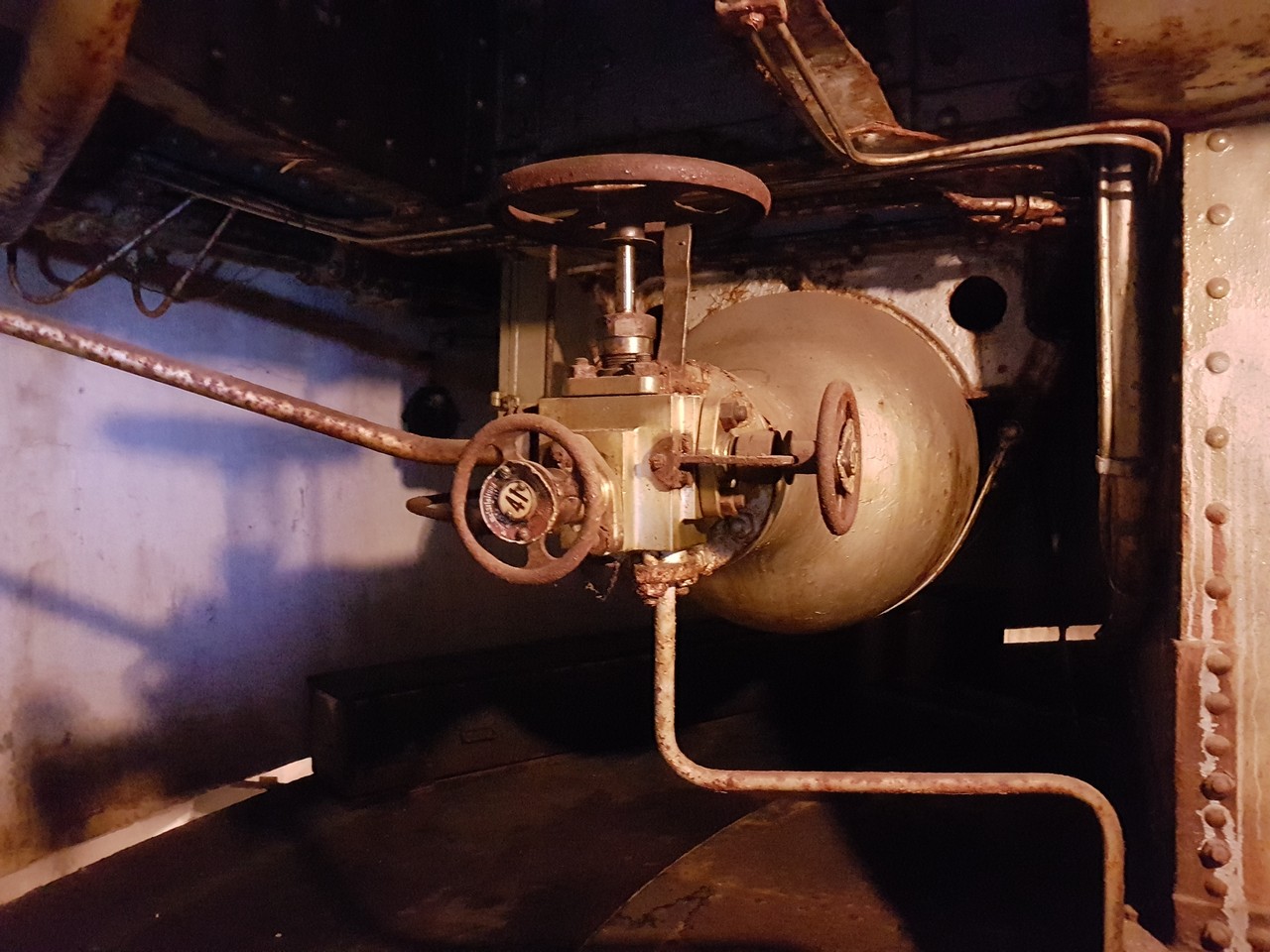

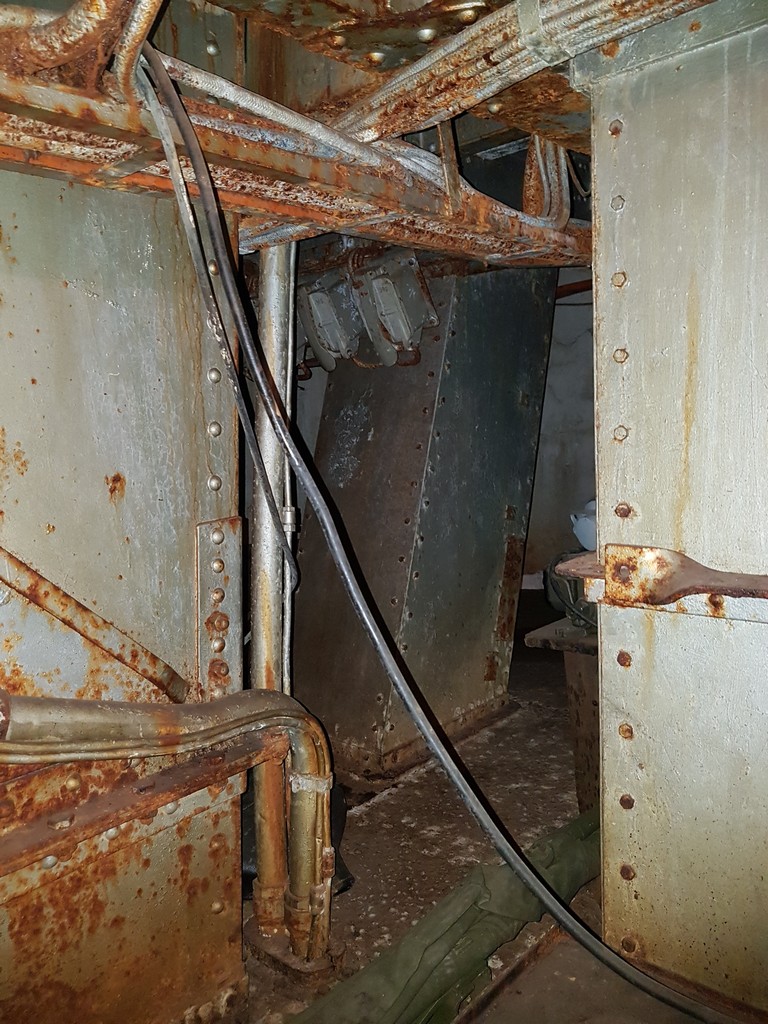

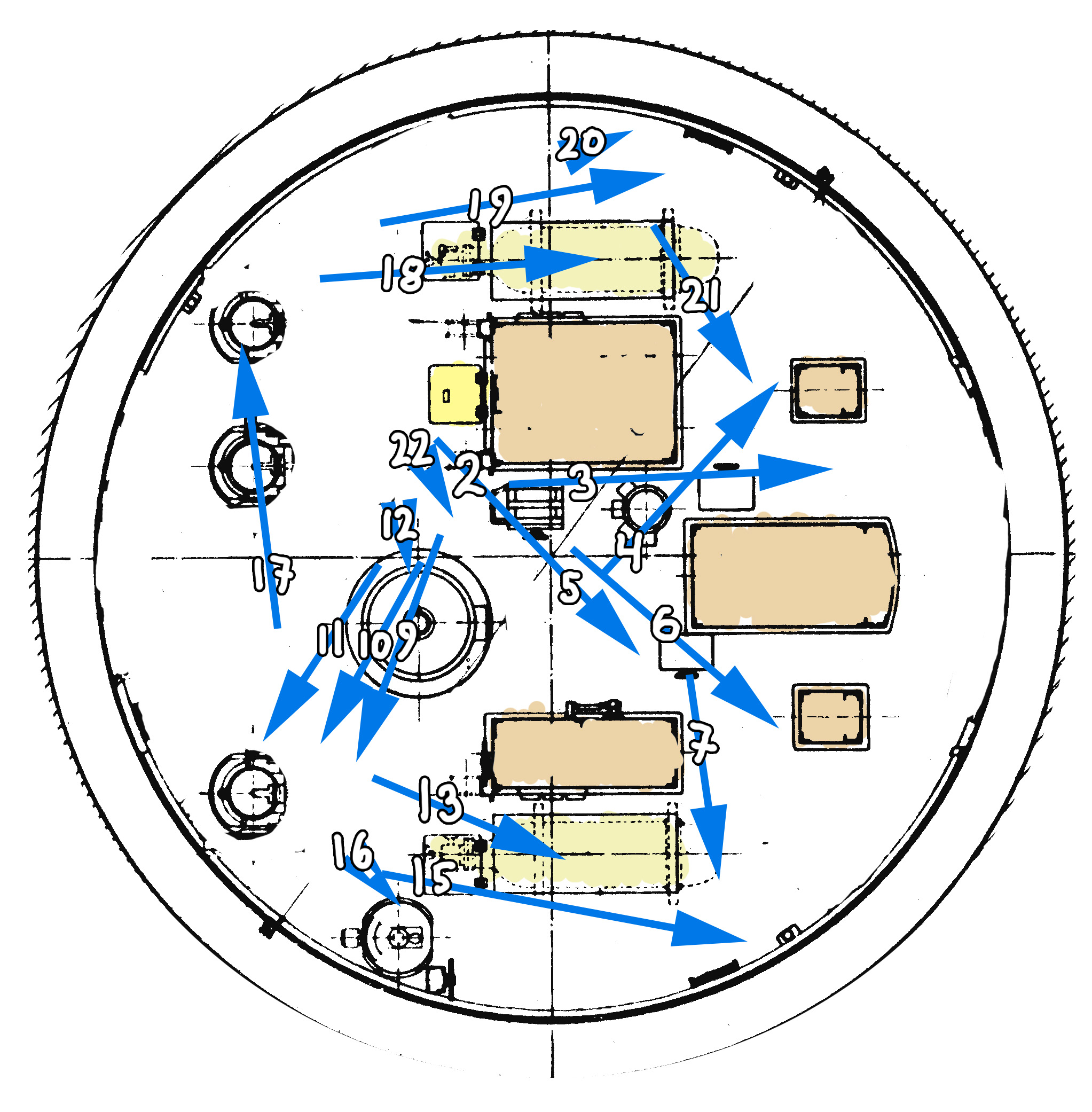

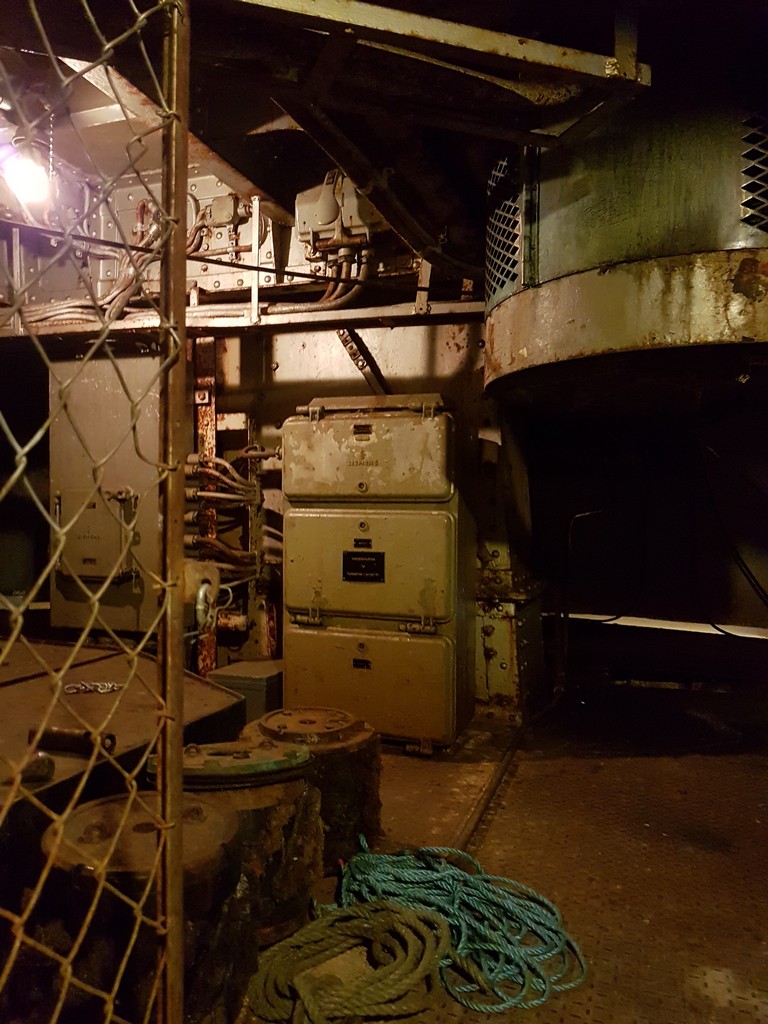

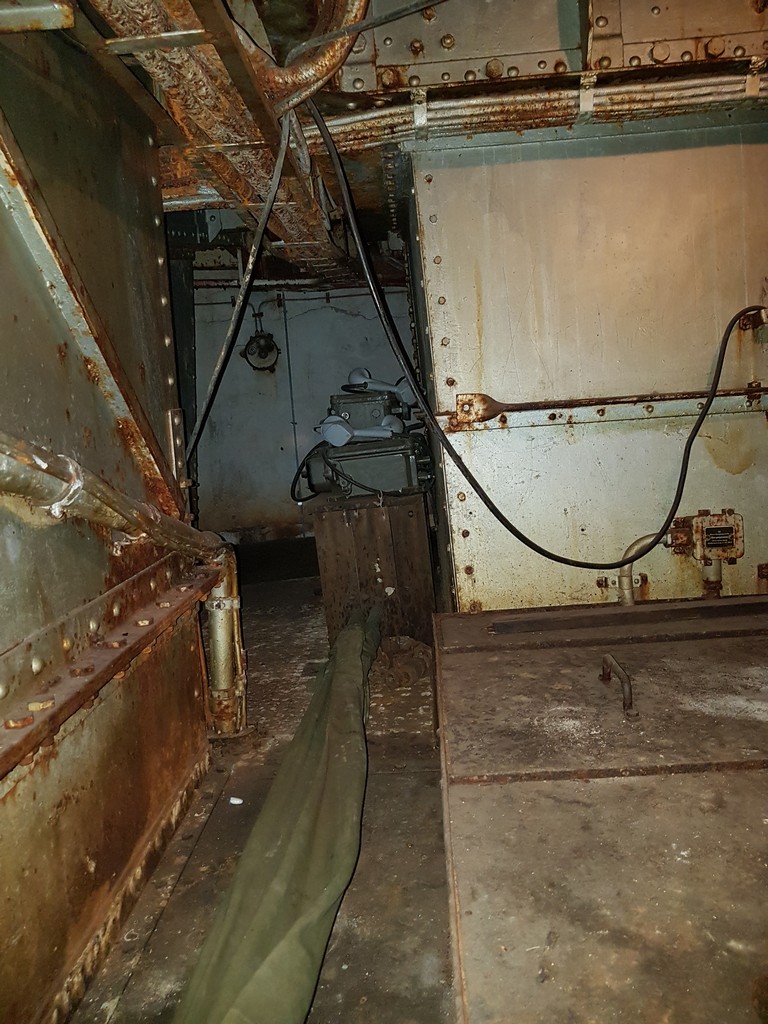

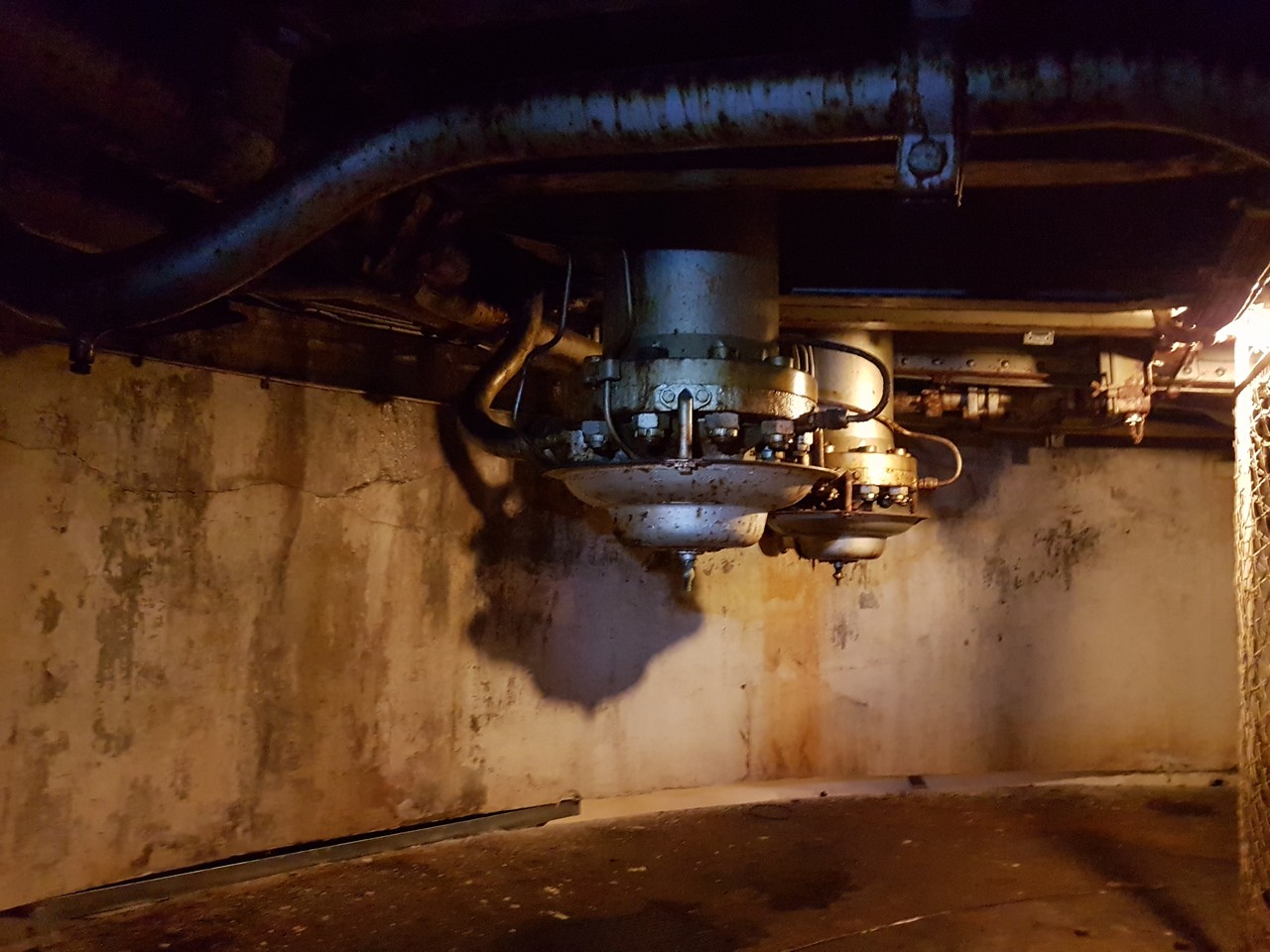

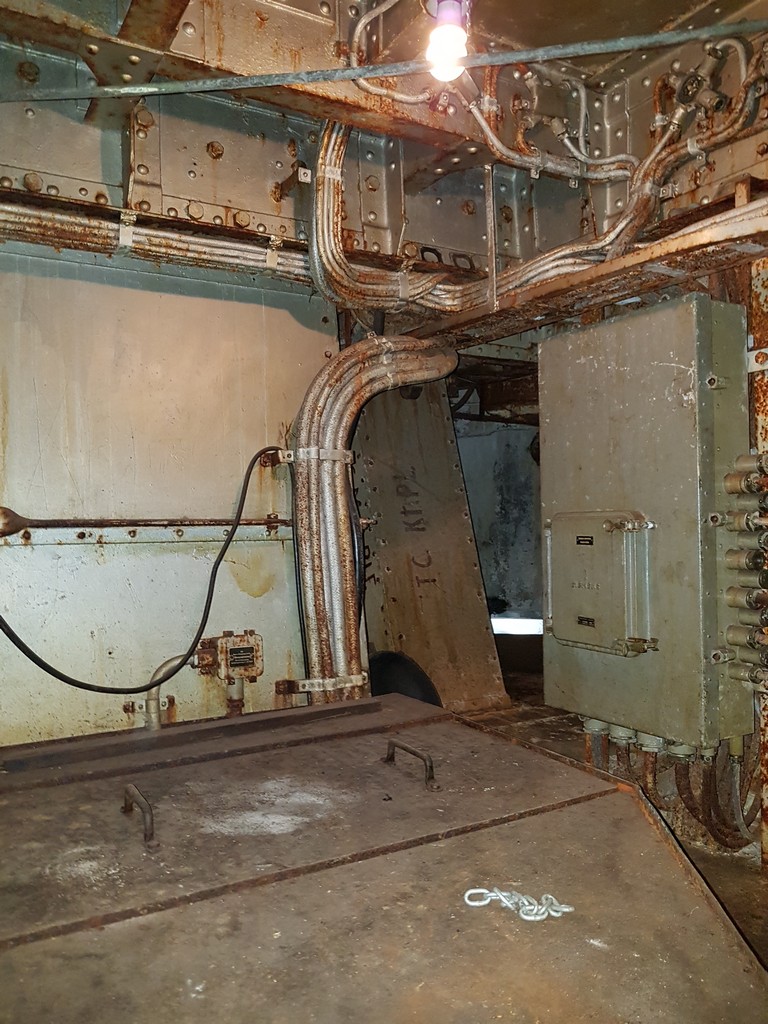

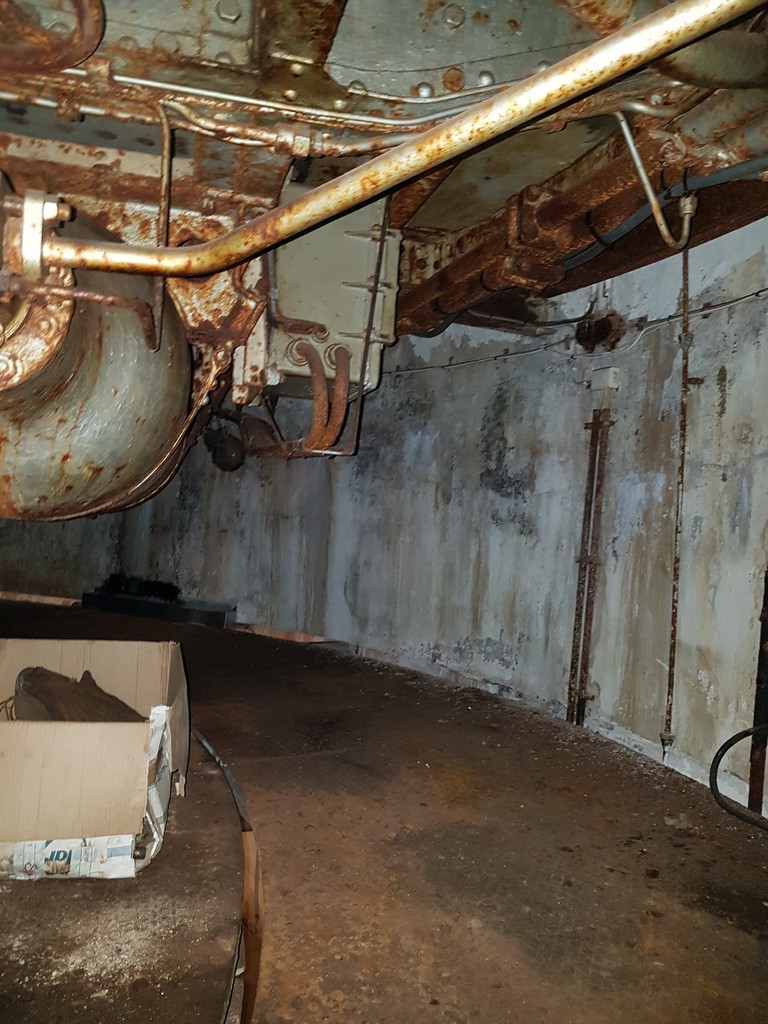

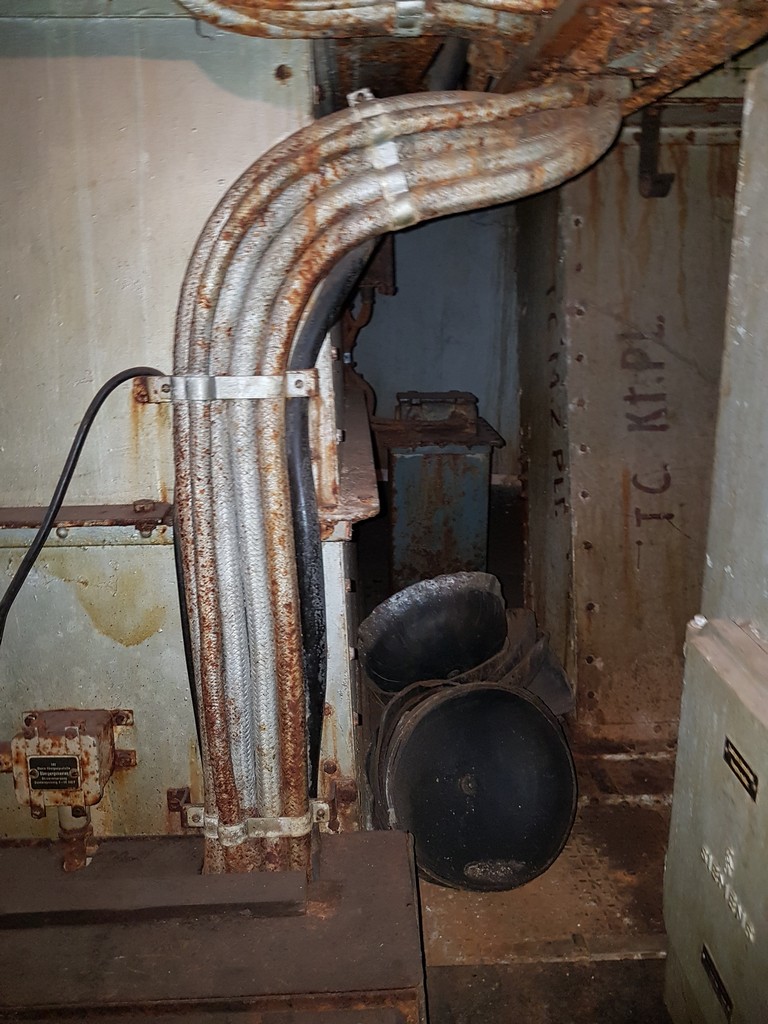

Pictures of the "mellomplattform" taken for a week ago. its a cramped place, and i had my 4 year old with me, so I did not get the time to take pictures from all angles. numbers on the map tells where i took the pictures. hope this helps
E

[Jack B]

Wow.

Thank you for those pictures. That really helps identify some of the equipment on that level.

Jack

[Jack B]

Would some one be able to give me the dimensions for the canister the main charge was stored in?
